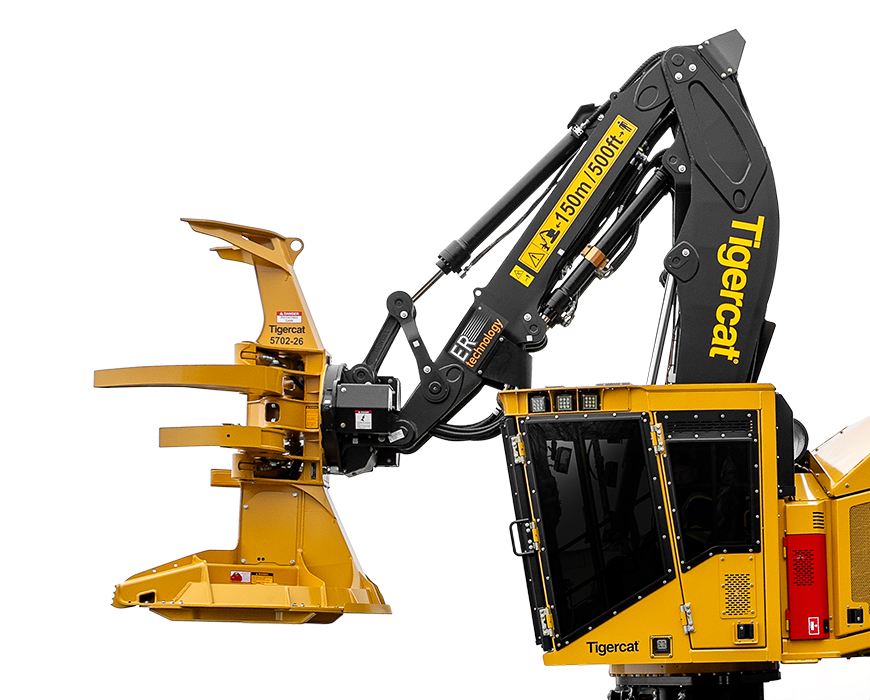

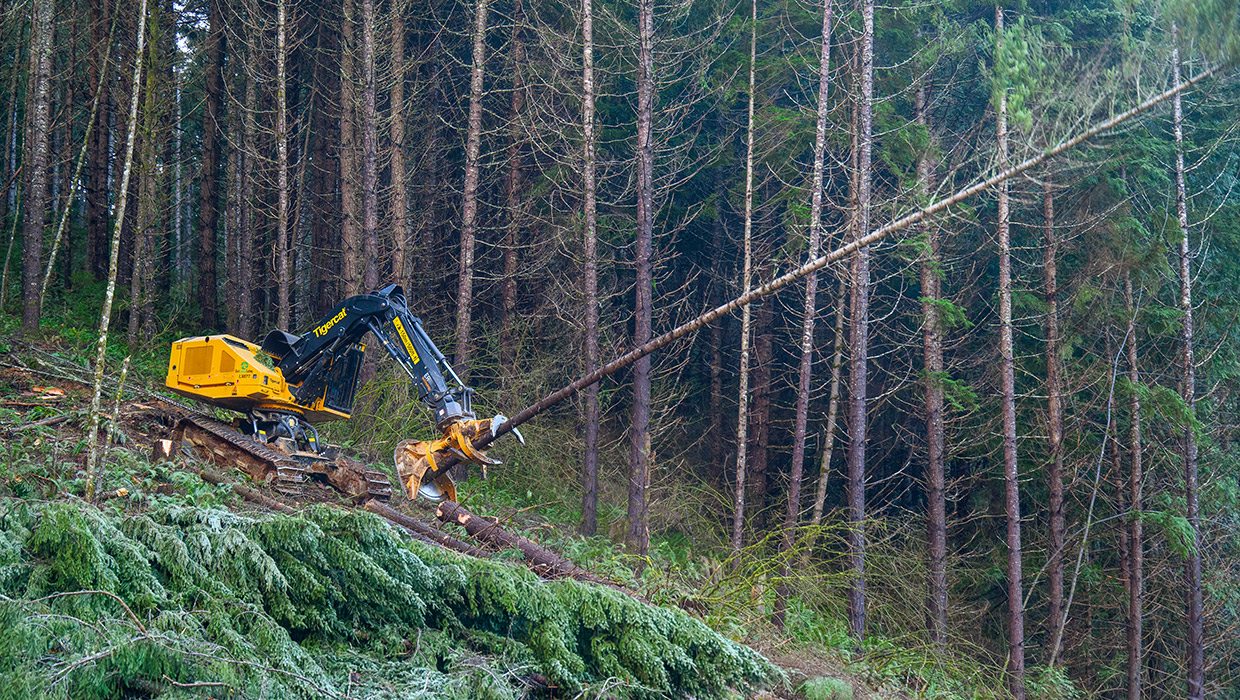

The ER boom system provides tighter tuck, increased envelope and more below grade capability. Through-tip routing offers better protection of the hoses leading to the felling head. Three-mode ER provides the operator with a wide range of boom control options.

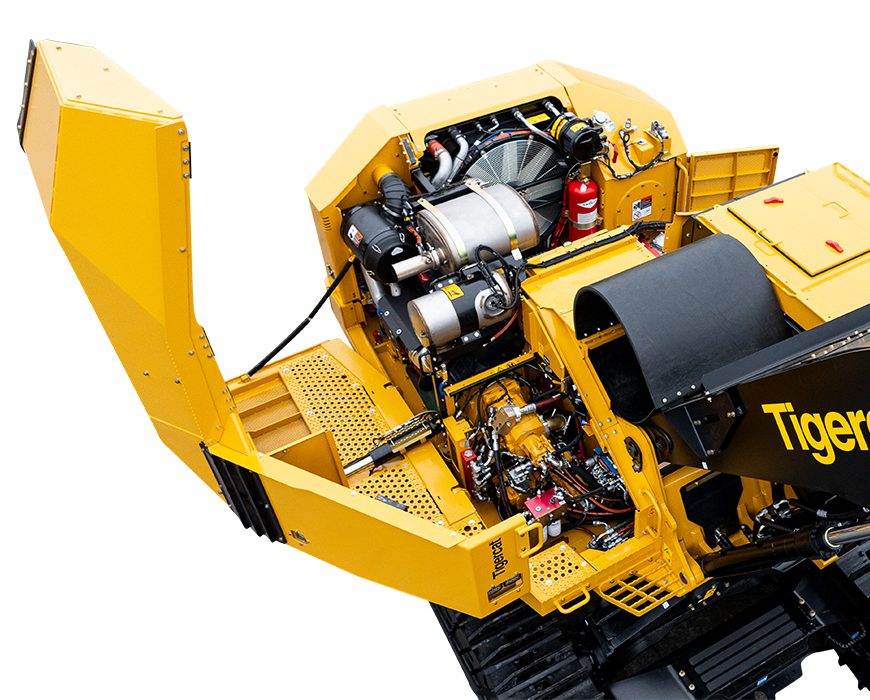

The side opening engine roof completely exposes the top and both sides of the engine, and most hydraulic components. When open, the enclosure roof serves as a spacious side service platform to work comfortably and safely.

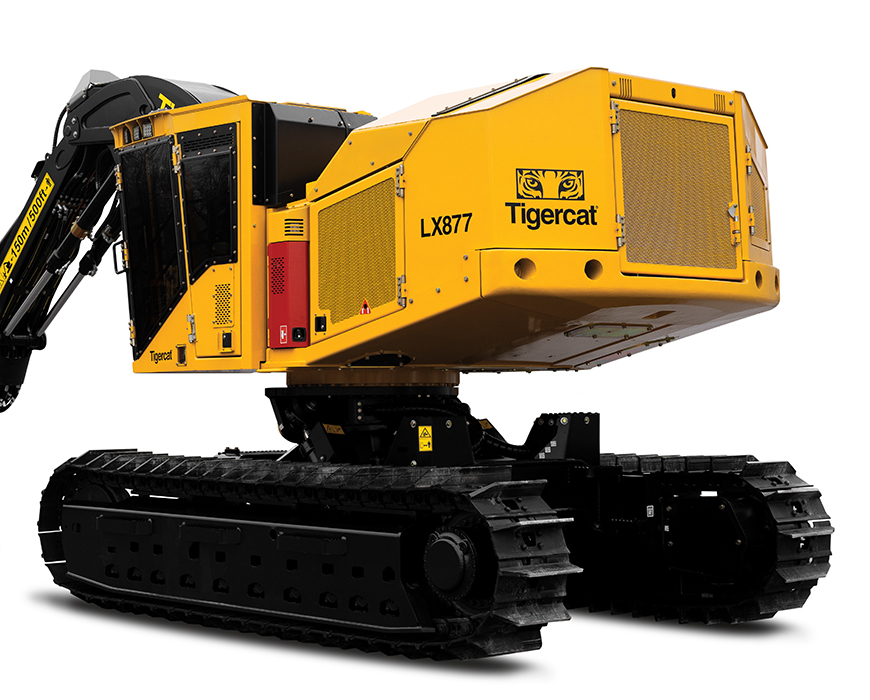

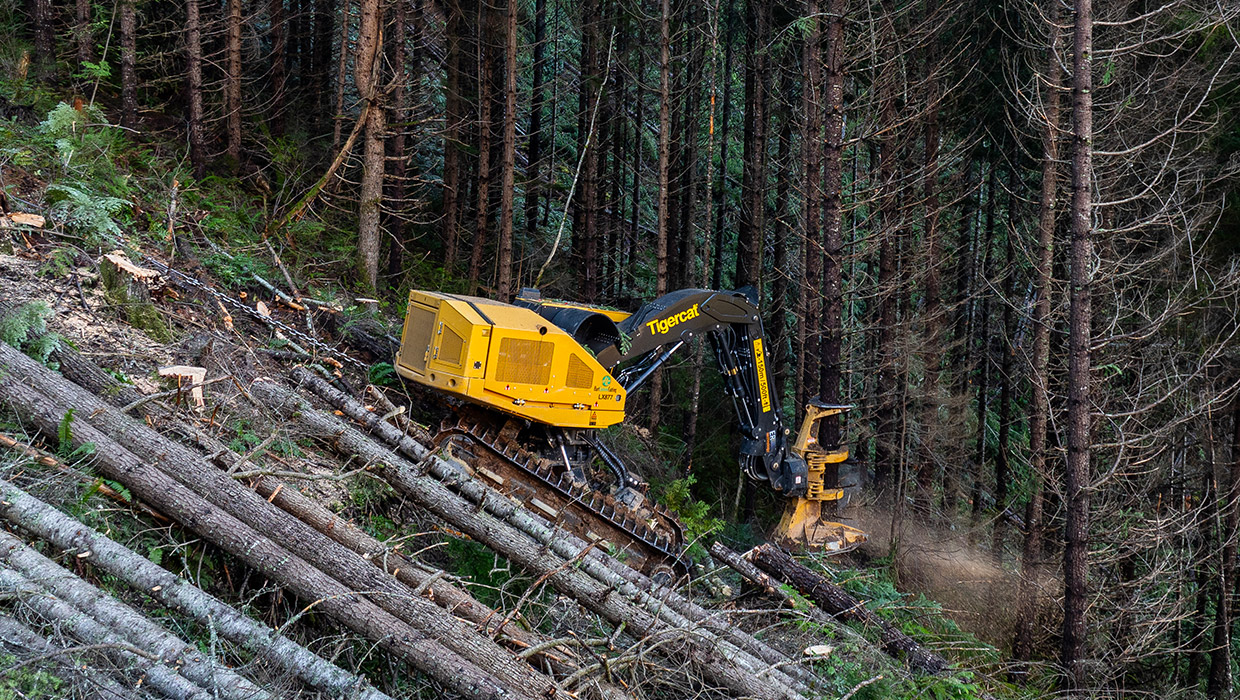

Optimized weight distribution and low centre of mass, along with Tigercat’s patented super duty leveling undercarriage, provide excellent stability on steep slopes. The unique sloping tail design increases leveling capability to 26 degrees. Additional clearance improves cable management on winch assist applications, reducing chain rub and interference.
| LENGTH less boom | 5 280 mm |
| WIDTH with steps | 3 430 mm |
| HEIGHT | 3 710 m |
| GROUND CLEARANCE | 710 mm |
| WEIGHT less attachment | 38 300 kg |
| TAIL SWING RADIUS | 3 075 mm |
| ENGINE Tier 4f | Tigercat FPT C87 Tier 4f, 260 kW (350 hp) @ 1,950 rpm (rated) |
| AIR FILTRATION | Precleaner and 2-stage engine air cleaner |
| COOLING | Aluminum side-by-side radiator, oil cooler, charge air cooler, A/C condenser Removable intake debris screen |
| FAN | Hydraulically driven, automatic variable speed, reversible |
| FUEL CAPACITY | 850 L |
| DEF CAPACITY | 80 L |
| LOW RANGE | 1,8 km/h |
| HIGH RANGE | 4,2 km/h |
| PUMP, MAIN | Piston |
| PUMP, SAW | Piston |
| PUMP, FAN | Piston |
| PUMP, TRACK | (2) Piston, closed loop |
| PUMP, CLAMP/ACCUM. | Piston |
| PUMP, CHARGE/PILOT | Gear |
| FILTRATION, MAIN HYDRAULICS | (2) In-tank, 10 micron full flow |
| FILTRATION, CHARGE/PILOT | (2) Spin-on, 6 micron full flow |
| CYLINDERS, HOIST | (2) 120 mm (4.7 in) bore |
| CYLINDERS, STICK/ER | (2) 110 mm (4.3 in) bore |
| CYLINDER, TILT | 130 mm (5.1 in) bore |
| CYLINDERS, LEVELING | (2) 180 mm (7 in) bore |
| HORSEPOWER CONTROL | Electronic speed sensing All-speed antistall |
| RESERVOIR | 295 L |
| TRACK FRAMES | R7-163L super-duty forestry leveling Integral track guides/ramp angles |
| TRACK CHAIN | FH400 215 mm (8.5 in) pitch |
| FINAL DRIVE | (2) Axial piston motors Infinitely variable speed |
| TRACTIVE EFFORT | 387 kN |
| GEARBOX | Triple reduction planetary type with brake |
| FRONT IDLER | Hydraulic track adjuster Spring shock absorber |
| ROLLERS, LOWER | (10) FH400 excavator type |
| SLIDES, UPPER | Bolt-on |
| TRACK SHOE | 610 mm (24 in) single grouser |
| Optional | 710 mm (28 in) single grouser |
| LEVELING | 26° forward; 7° rear; +/-22° side |
ER technology allows the operator to actuate the boom with optimal hydraulic efficiency. Extend and retract on a horizontal plane quickly and smoothly with a single joystick.
