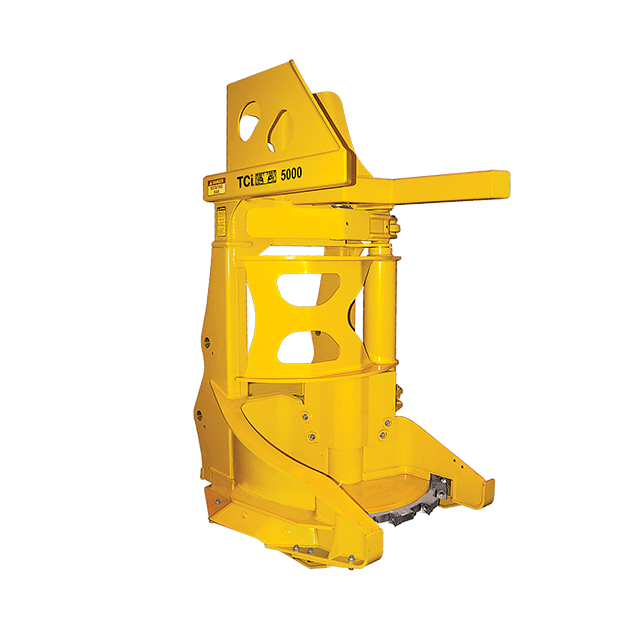

5000 Bunching Saw

5000 Bunching Saw

Tigercat's innovative line of patented bunching saws significantly improves the productivity of the entire harvesting system in high volume plantation applications.

Find a Dealer

Overview

The 5000 bunching shear is for drive-to-tree and track feller bunchers and is best suited to pine and eucalyptus plantations. The 5000 series saw achieves optimal production in uniform timber profiles sized under 40 cm (16 in) diameter.

Tigercat bunching saws increase the productivity of the entire harvesting system while reducing cost per tonne. Feller buncher productivity and efficiency improves because more trees are cut per cycle, reducing unnecessary machine travel. Skidder productivity and efficiency improves because the bunches are large, well aligned and easy to pick up.




Key Benefits

  • Improves both feller buncher and skidder productivity by increasing number of cut stems per cycle and by laying down tight, parallel aligned skidder bunchers
  • More cutting and less machine travel; the unique two-arm design allows more trees to be stored before stopping to dump the accumulated bunch
  • Twin post design with offset pocket for excellent visibility
  • Deep accumulating pocket places the load closer to the machine for improved stability
  • Cushioned cylinders for long life
  • Recessed saw blade and clever guarding reduce the throw angle and deflect chips downward, decreasing saw recovery time

Downloads

See below related files that you can download.

Show measurements as:
Metric
Imperial
WIDTH (metric)1 650 mm
HEIGHT less skis (metric)2 460 mm
DEPTH (metric)1 575 mm
BASE WEIGHT (metric)2 155 kg
FRONT OPENING (metric)860 mm
BETWEEN SKIS (metric)965 mm
30˚ WRIST1-cylinder; 127 mm (5 in) bore
340˚ WRIST3-motor drive
ACCUMULATING ARM90 mm (3.5 in) bore
CLAMP ARM90 mm (3.5 in) bore
SINGLE CUT CAPACITY (metric)510 mm
SINGLE CUT CAPACITY imperial)20 in
ACCUMULATING AREA (metric)0,52 m²
ACCUMULATING AREA, Including blade (metric)0,62 m²
DISC series 741 285 mm ( 50.5 in) diameter 1-piece
KERF57 mm (2.25 in)
TEETH(16) rotatable Carbide or hardened steel
MOTOR160 cc
BLADE SPEED1,275 rpm
SAW DRIVEDirect drive; Piston motor
