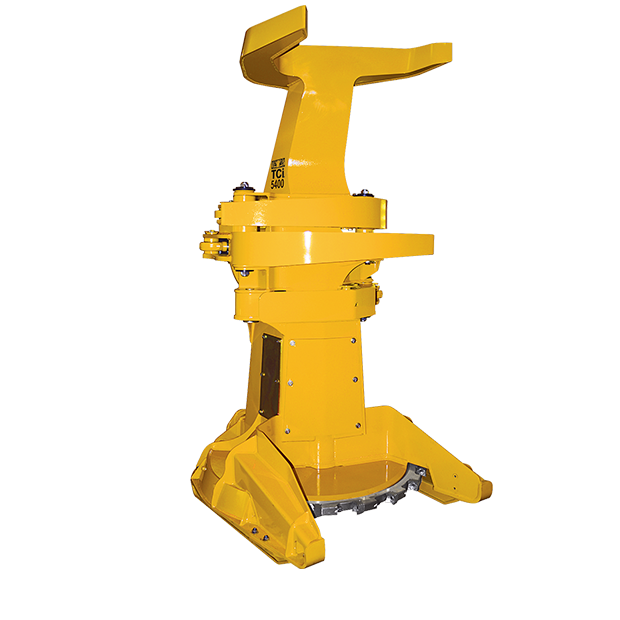

5400 Felling Saw

Overview

With innovative, asymmetrical geometry and a three-arm design, the 5400 felling saw is versatile with the ability to bunch smaller stems or fell large diameter timber. Accumulating several trees in parallel alignment increases both feller buncher and skidder productivity.

Larger trees, up to 545 mm (22 in) diameter are centered on the butt plate for excellent balance and control. Small diameter trees are accumulated and stored in the offset pocket.

Key Benefits

Unique three-arm asymmetric single post design for excellent bunching performance
Improves both feller buncher and skidder productivity by increasing number of cut stems per cycle and by laying down tight, parallel aligned skidder bunchers
Three wrist options: 30, 110, 340 degree rotation
Cushioned cylinders for long life
Recessed saw blade and clever guarding reduce the throw angle and deflect chips downward, decreasing saw recovery time

Videos

845E Feller Buncher Video

845E Video

Watch Tigercat machines in action! This logging video features the Tigercat 845E feller buncher operating in Nova Scotia, Canada. Due to close proximity to the ocean, timber in this area is rather moist and used mostly for pulpwood. Watch the Tigercat 845E fell softwood with the Tigercat 5400 felling attachment. Download video in HD

Downloads

See below related files that you can download.

- Felling head brochure
- Felling heads brochure – Limited Accessibility (13.94 Mb)
- Felling heads brochure (quick download) – Limited Accessibility (2.87 Mb)

Photos

SPECIFICATIONS

Show measurements as:

Metric

Imperial

Dimensions

WIDTH	1 620 mm
WIDTH	64 in
HEIGHT less skis	2 820 mm
HEIGHT less skis	111 in
DEPTH	1 700 mm
DEPTH	67 in
BASE WEIGHT	2 690 kg
BASE WEIGHT	5,930 lb
FRONT OPENING	1 320 mm
FRONT OPENING	52 in
SINGLE CUT CAPACITY	535 mm
SINGLE CUT CAPACITY	21 in
ACCUMULATING AREA	0,34 m²
ACCUMULATING AREA	3.7 ft²
Including blade	0,46 m²
Including blade	4.9 ft²
ACCUMULATING CAPACITY	(8-10) trees 15 cm (6 in) diameter

Hydraulic Cylinders

ACCUMULATING ARM	90 mm (3.5 in) bore
CLAMP ARM	90 mm (3.5 in) bore
110° WRIST	2-cylinder adjustable, 115 mm (4.5 in) bore
340° WRIST	3-motor drive, high torque

Cutting Blade

DISC series 74	1 450 mm ( 57 in) diameter 1-piece
KERF	57 mm
KERF	2.25 in
TEETH	(18) rotatable Carbide or hardened steel
MOTOR	160 cc
BLADE SPEED	1,150 rpm
SAW DRIVE	Direct drive Piston motor
