A durable and advanced solution for felling large diameter, high value timber.

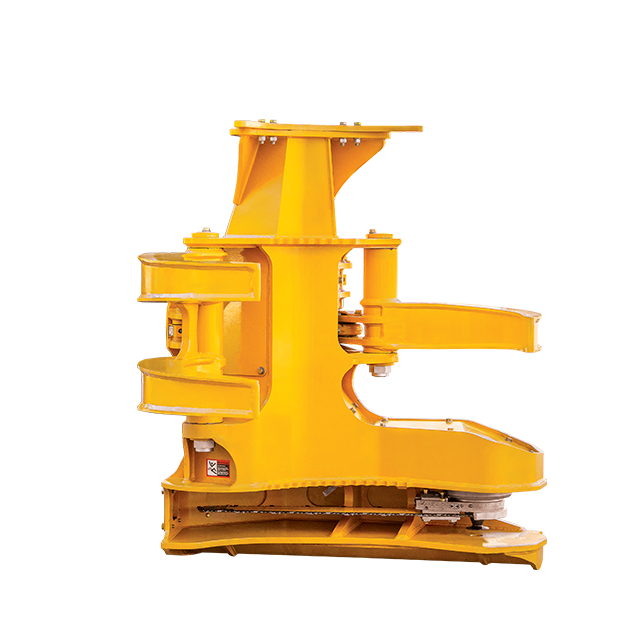

5185B Fixed Felling Saw

5185B Fixed Felling Saw

A durable and advanced solution for felling large diameter, high value timber. SPECS DEALER BENEFITS Felling Heads SPECS BENEFITS DEALER

Highlights

weight icon
weight icon




Weight
Maximum Cut
Maximum Opening
1 950 kg
4,300 lb
915 mm
36 in
1 300 mm
51 in
Weight
Maximum Cut
Maximum Opening
1 950 kg
4,300 lb
915 mm
36 in
1 300 mm
51 in

Innovative Saw Unit

Dual Cylinder Grapple

High Torque, High Rotation

Innovative Saw Unit

Dual Cylinder Grapple

High Torque, High Rotation

Overview

The 5185B is a versatile and customizable fixed wrist bar saw head. It effectively fells and controls large diameter timber while performing additional duties like topping, limbing and shovel logging. The 5185B is a great asset in high value hardwood stands.

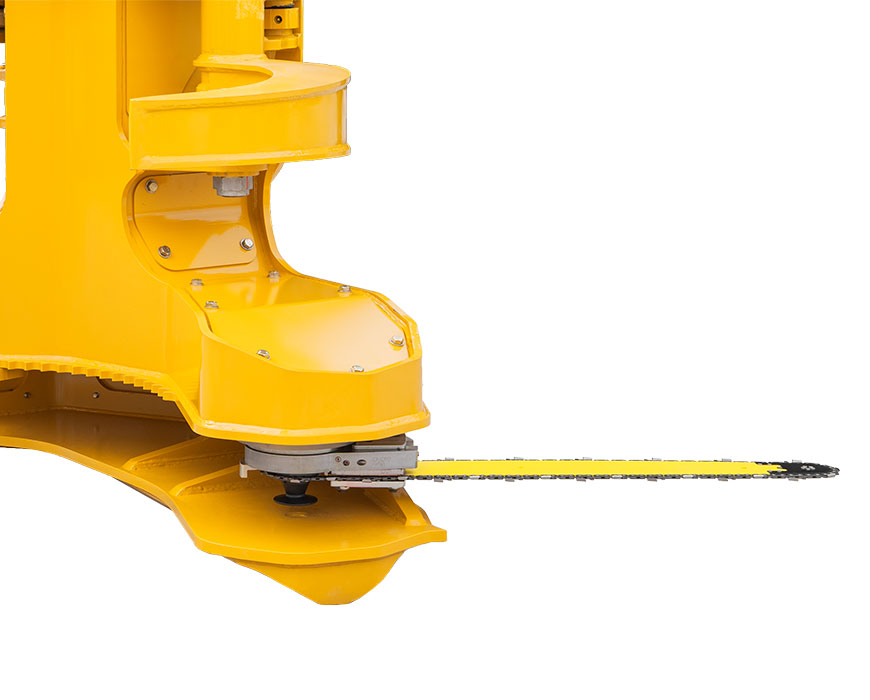

Innovative Saw Unit

The Tigercat 750RP saw unit with a 240-degree bar feed angle enables single-side back cuts, reducing machine travel and soil disturbance.

Variable bar feed force control adapts to varying diameters and species.

The 5185B is standard equipped with a hydraulic chain tensioner with an optional manual tensioner.

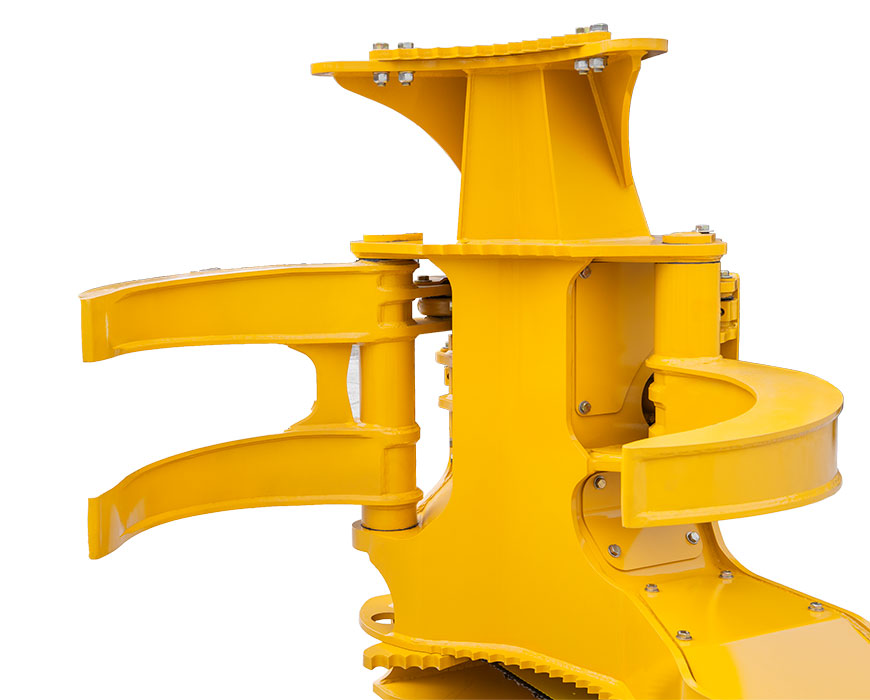

Dual Cylinder Grapple

The dual cylinder grapple arm design provides maximum control when falling and grappling high-value timber.

The grapple-style arm design enables superior grip and excellent performance in selective felling and shovel logging applications.

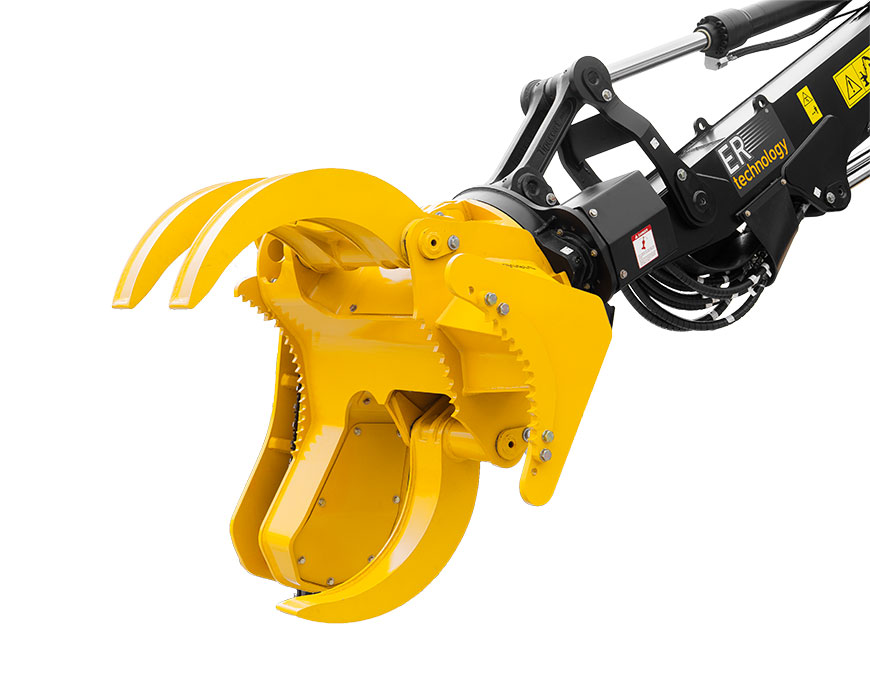

High Torque, High Rotation

The high torque wrist enhances control falling of large diameter timber. 340-degree rotation reduces machine travel for improved fuel efficiency and track life, while allowing the operator to cut large limbs and tops with ease.

The hydraulic hoses are well protected with through-tip hose routing.

Product Specifications

Metric
Imperial

Dimensions

WIDTH arms open 1 940 mm
HEIGHT track carriers 1 890 mm
DEPTH arms open 2 020 mm
WEIGHT with 340HT wrist assembly 2 845 kg
MINIMUM CLOSED DIAMETER 100 mm

Grapple Arms

MAXIMUM OPENING 1 300 mm
MINIMUM CLOSED DIAMETER 100 mm

Hydraulic Cylinders

GRAPPLE ARMS (2) 95 mm (3.75 in) bore, cushioned

Cutting

CHAIN OIL CAPACITY 23 L (6 US gal), filtered
MAIN SAW UNIT standard Tigercat 750RP
BAR standard 1 140 mm
MAXIMUM CUT 915 mm
SAW MOTOR Piston, high pressure, 60 cc
CHAIN 19 mm (0.75 in) pitch, 11H
CHAIN TENSION Auto-tension (fixed while cutting)
TCi Brochure

Key Benefits

Tigercat 750RP saw unit with 240 degree bar feed angle, enabling single-side back cuts
High torque 340 degree wrist. Excellent control of large timber, reduced machine travel
Dual cylinder grapple arms. Excellent control and grip
Heavy duty reinforced chassis and arms
From-the-seat tuning, and operator-selectable saw functions to tailor performance
Easy to service. Quick bar and chain replacement
Tigercat 750RP saw unit with 240 degree bar feed angle, enabling single-side back cuts
Dual cylinder grapple arms. Excellent control and grip
From-the-seat tuning, and operator-selectable saw functions to tailor performance
High torque 340 degree wrist. Excellent control of large timber, reduced machine travel
Heavy duty reinforced chassis and arms
Easy to service. Quick bar and chain replacement

5185B Enhancements

5185 fixed felling saw is upgraded to B-series with enhancements to improve productivity in large diameter timber harvesting applications.


LEARN MORE

Colton’s Journey

BTB visits Grass Lake, Michigan, to chat with third-generation logger Colton Fodor. Colton shares his experiences becoming a teenage logging business owner and navigating the Michigan industry to remain successful.


LEARN MORE

Resources

loader-icon

Trevor Haywood Timber Co. LX830D with 5185


BTB visited Trevor Haywood of Trevor Haywood Timber Co. in Huntingdon, Tennessee to hear how his most recent purchase, a Tigercat LX830D feller buncher equipped with 5185 fixed felling saw, is fitting into the operation.


Customer Driven Design


BTB recently visited J&B Logging Inc. in Oakland, Maryland to see how Jimmy Glotfelty’s 5185 fixed felling saw is working out.


In the Thick of It


Jimmy Glotfelty wrestles with giants as he tiptoes through West Virginia’s natural mixed hardwood forests.


The J&B Logging Inc. crew soon after taking delivery of the LX830C in late 2010. (L-R) Tigercat district manager Jerry Smeak, Eric Savage (hand faller, dozer operator), Lynn Sisler (LX830C operator), Jimmy Glotfelty (owner) and Brad Beckman (240B loader operator). Skidder operator, Terry Alexander, is absent.

5185 Fixed Felling Saw in Tasmania


The 5185 fixed felling saw felling large diameter pine in Tasmania. The powerful grapple and 340 degree wrist provide excellent control, minimizing damage to the high value timber.
